Military Avionics Test System Display

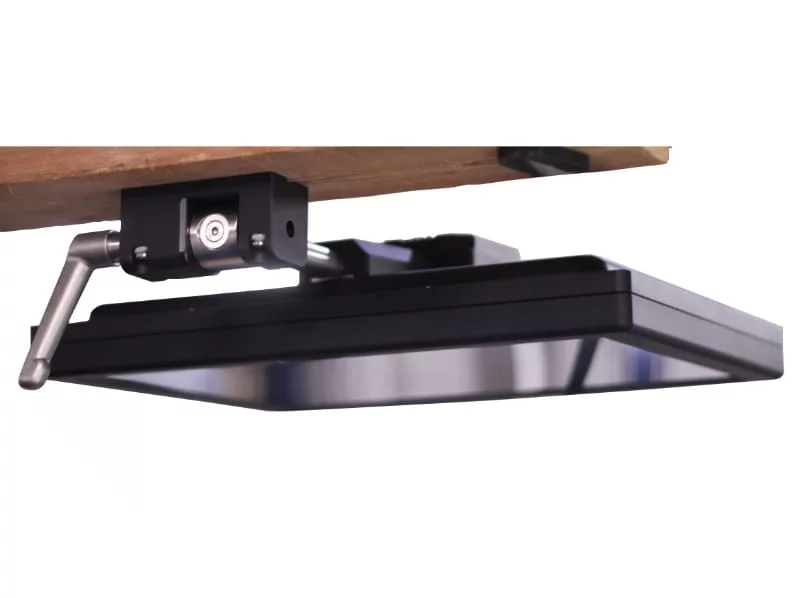

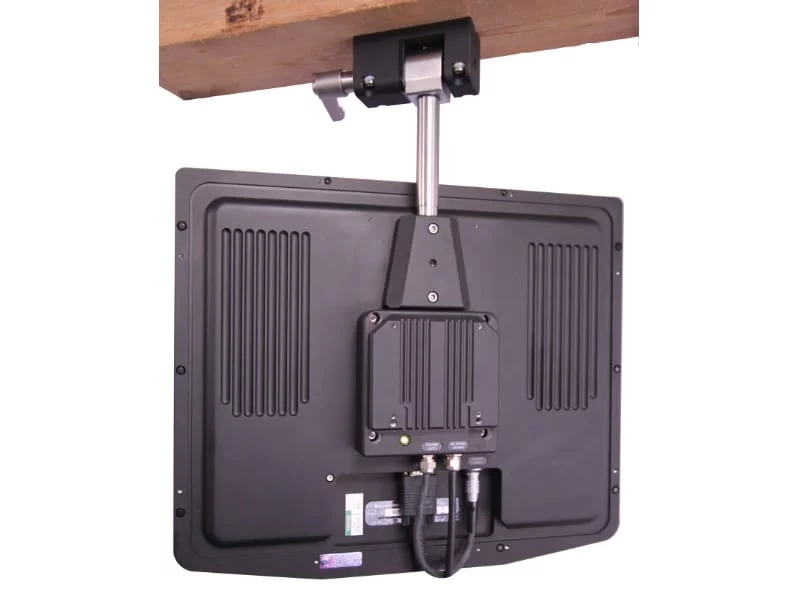

We were asked to produce a custom configuration of our 19” Titan free mounted monitor with a military spec mains power supply, and a custom version of our side mounting bracket configured to work as a deckhead mounting. The new bracket configuration gives the unique ability to stow the monitor folded back out of the way giving vital quick access to critical equipment behind the monitor position.

The display was configured with an EMC mesh window to control radiated emissions to enable it to meet Def stan 59-411 below decks standards.

We also designed a new filter module enabling the PSU to meet the requirements of Def Stan 59-411 for shipborne use, and the combined package of monitor, power supply and mounting bracket were integrated together to produce a neat compact and highly flexible solution which simplified the installation on a sophisticated  submarine sonar application.

The Titan 19” monitor is widely used in a range of different naval applications across the RN in both the submarine & surface fleets.

Please contact us to discuss your rugged monitor requirements in more detail with one of our experienced engineers.
