Description

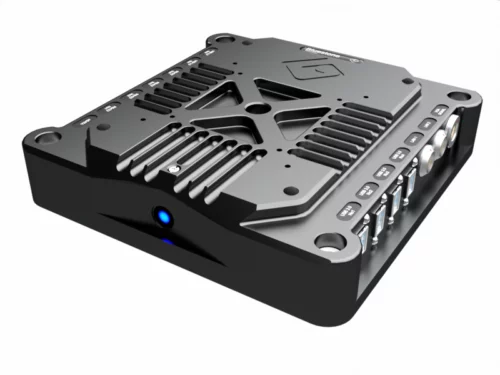

Designed around the high performance & low power Intel 6th Generation i7 6600U CPU, the Poseidon Xtreme rugged computer is designed to complement the Bluestone range of rugged monitors. The casing is fully machined from solid aluminium and is sealed to IP67/68, with isolation mounted internal components and extended temperature range its designed to work in the most extreme environments in military industrial and marine applications. The open architecture allows user configuration of the operating system to suit the user requirements.
The rugged machined aluminium casing is designed to be securely screwed into position on a platform, but can also be configured to fit onto the rear of our rugged monitors forming a neat & compact integrated panel PC system.
Alternative connector configurations are available dependent on the environment & application requirements.
Please contact us to discuss your particular project requirements with one of our experienced engineers who can guide you through the selection process.
| Outline Specification | |
|---|---|
| CPU | Intel 6th Generation i7 6600U |
| CPU Frequency | Up to 3.4GHz |
| Chipset | Skylake |
| Memory type | DDR4 1866/2133 SODIMM |
| Max. Memory Capacity | Up to 16GB |
| BIOS | UEFI |
| Watchdog Timer | 255 levels |
| VGA Controller | Intel HD Graphics 520 |
| Ethernet | 2 x Intel i211 10/100/1000Base-TX |
| Audio | High definition audio interface |
| USB Port | Up to USB2.0 x 2, USB3.0 x 4 |
| Serial Port | RS-232 x 1, RS-232/422/485 x 3 |
| SSD | mSATA (Half-size – Shared with Mini-Card) |
| HDD | SATA 3.0 x 1 |
| Expansion Slot | mSATA x 1 (Half-size), Mini-Card (Full-size) x 1 |
| TPM | TPM2.0 |
| Sealing | IP67/IP68 |
| Operating Temp | -20 to +70 Deg C |
| Storage Temp | -40 to +80 Dec C |
| Power | 40W typ |
| Voltage | 10-36 V DC wide input range |
| Weight | 3 Kg |
| Shock & Vibration | All internal components isolation mounted to protect against external shock & vibration |
