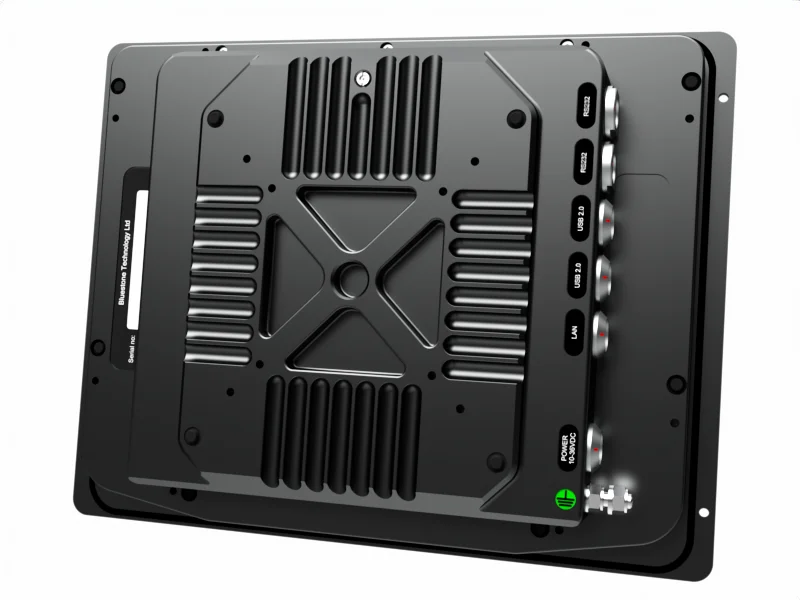

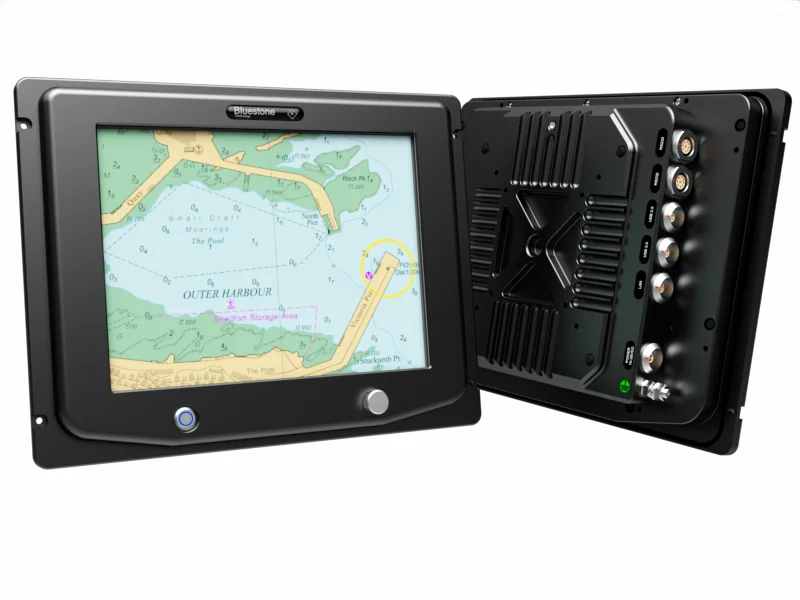

Poseidon 10.4″ Inch Rugged Panel PC

The Poseidon 10.4” Panel PC is a brand new, low power, rugged computer product that builds on the legacy of our long established Poseidon 10.4” monitor range. Designed for the harshest environments in military, marine & industrial applications it’s a fully sealed panel PC touchscreen.

Description

Based on the Intel Atom Quad core processor its optimised for low power operation and has a wide operating temperature range of -30° to + 60° C with fan less passive cooling . With up to 8Gb of RAM & 240Gb SSD its highly suited to data gathering & monitoring applications in a range of industries.

It can be configured with a selection of I/O connections to suit a wide range of different applications including LAN, USB, serial RS232 / RS422 / RS485.

As with all Bluestone products all the internal components are isolation mounted to protect against environmental shock & vibration and sealing up to IP67 is available.

Our products are all highly configurable so please contact us to discuss your requirements in more detail with one of our experienced application engineers.

Outline Specification
Display 10.4” Diagonal
Resolution XGA
Touch Screen 5 Wire Resistive
Processor Intel Atom Quad Core
CPU Frequency Up to 1.91 GHz
Max. Memory Capacity Up to 8Gb DDR3L RAM
Internal SSD (Optional) Up to 2TB
Watchdog Timer 255 levels
BIOS AMI/SPI
O/S All major Windows & Linux OS supported
EMC Designed to meet Def Stan 59-411 below decks
Sealing IP67
